Product Description

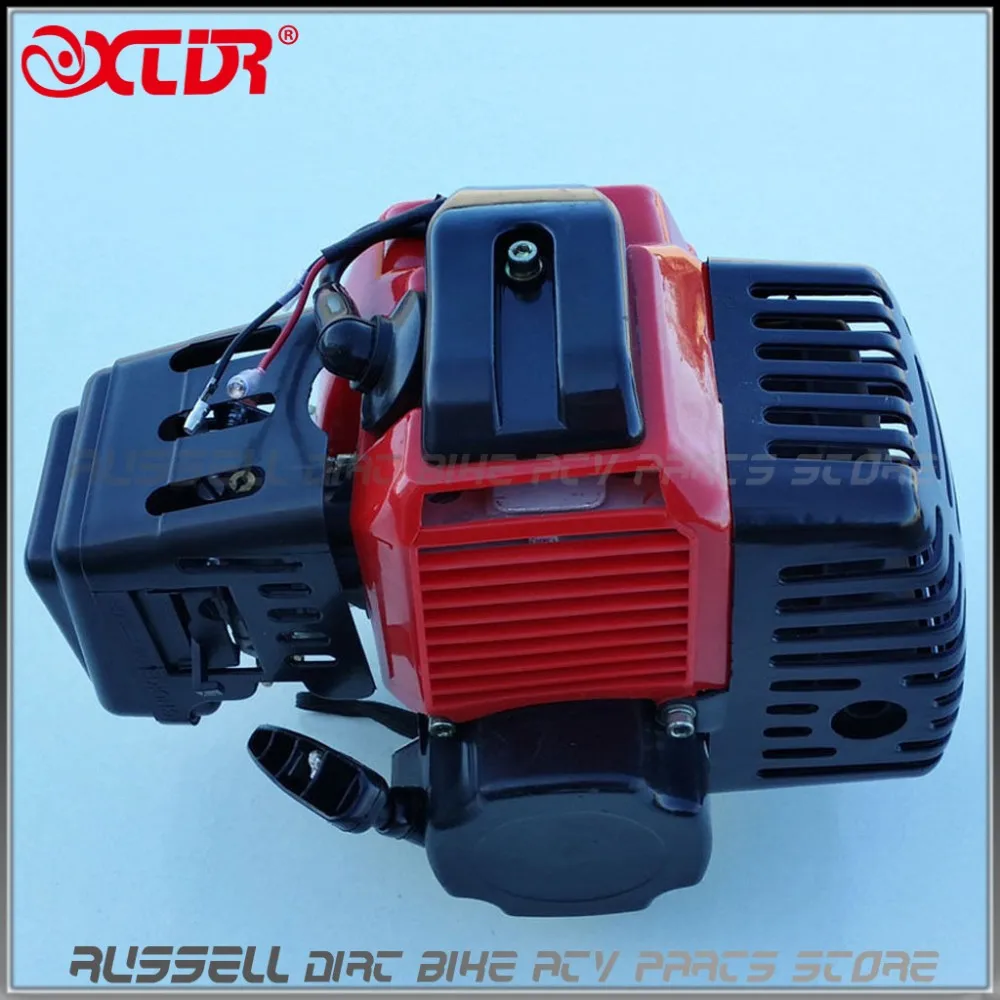

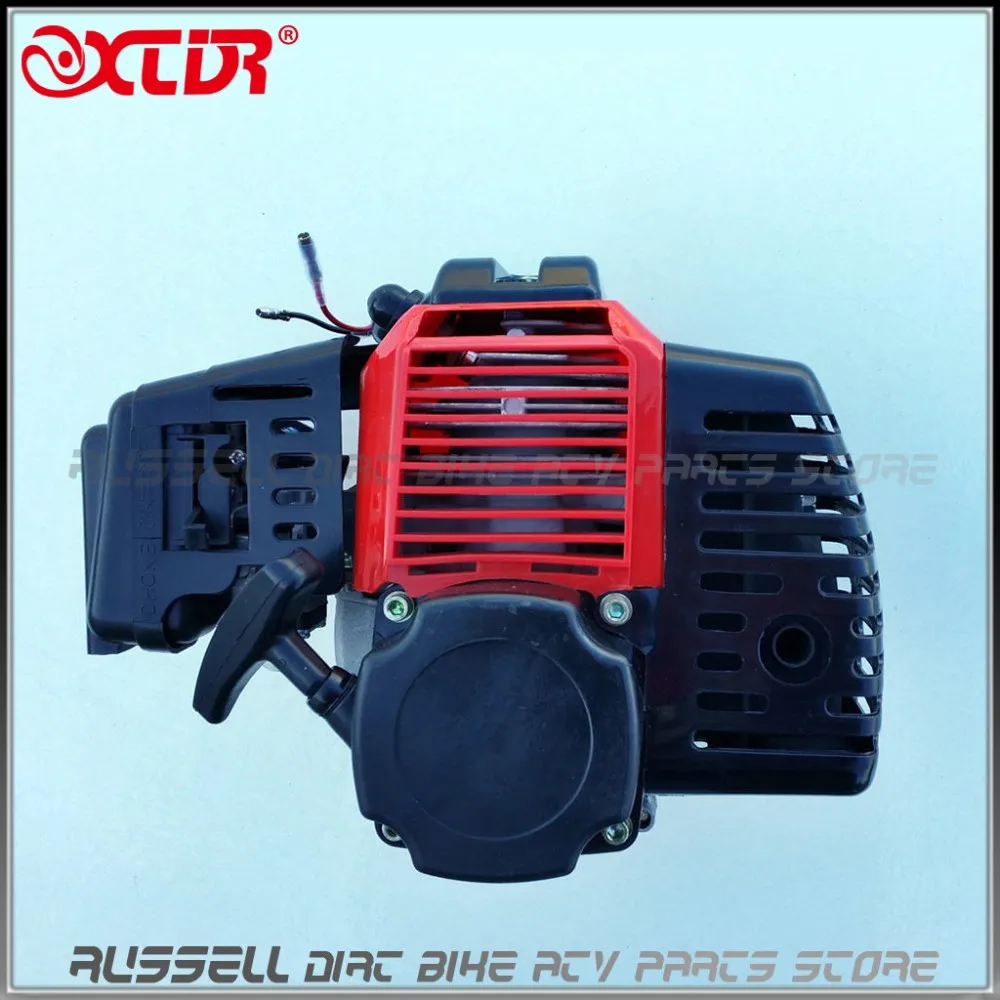

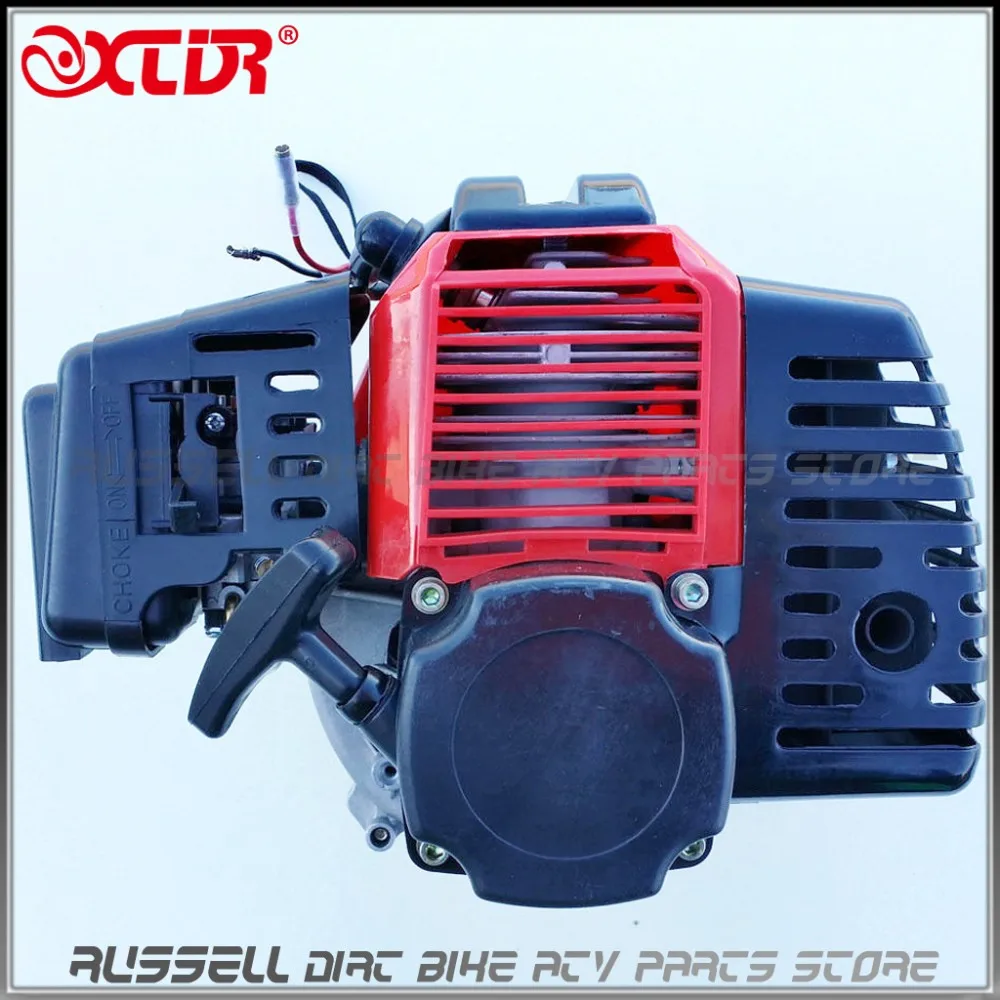

49cc Engine & gear reduction transmission for Mini ATV, pocket bike, scooter

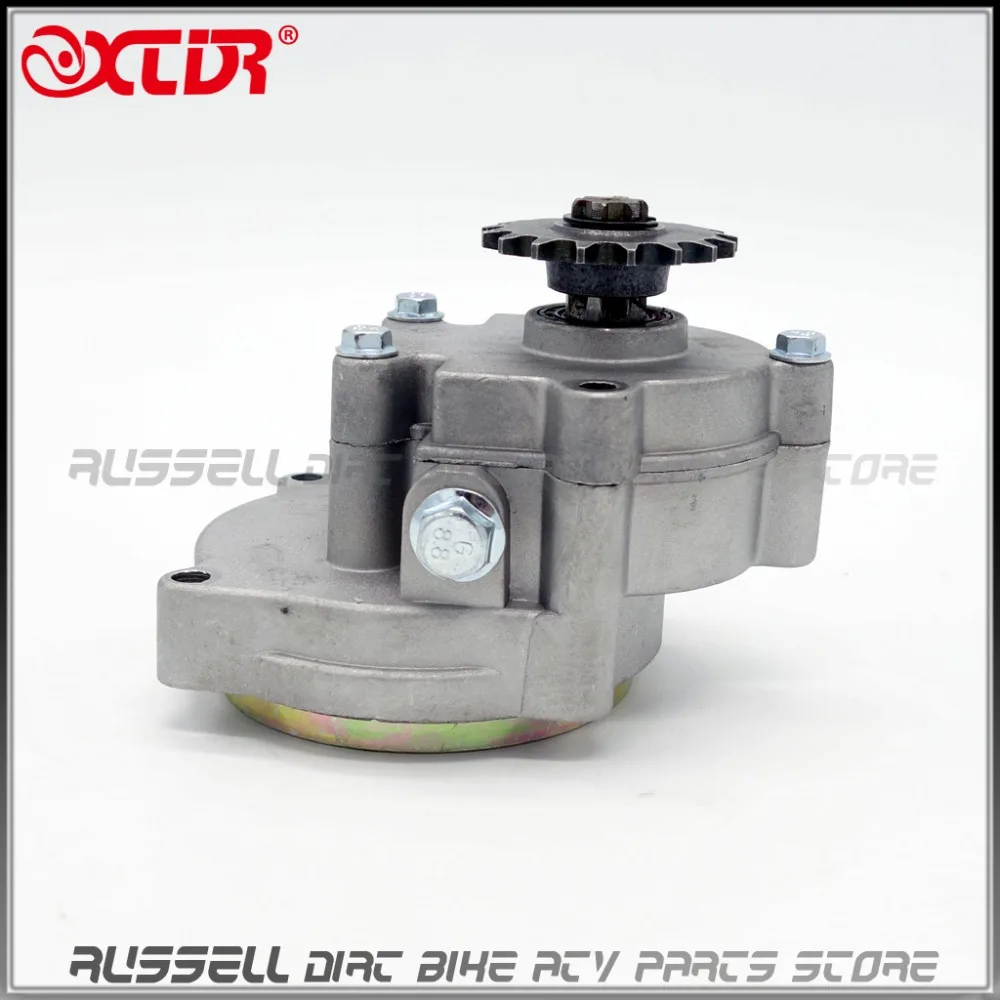

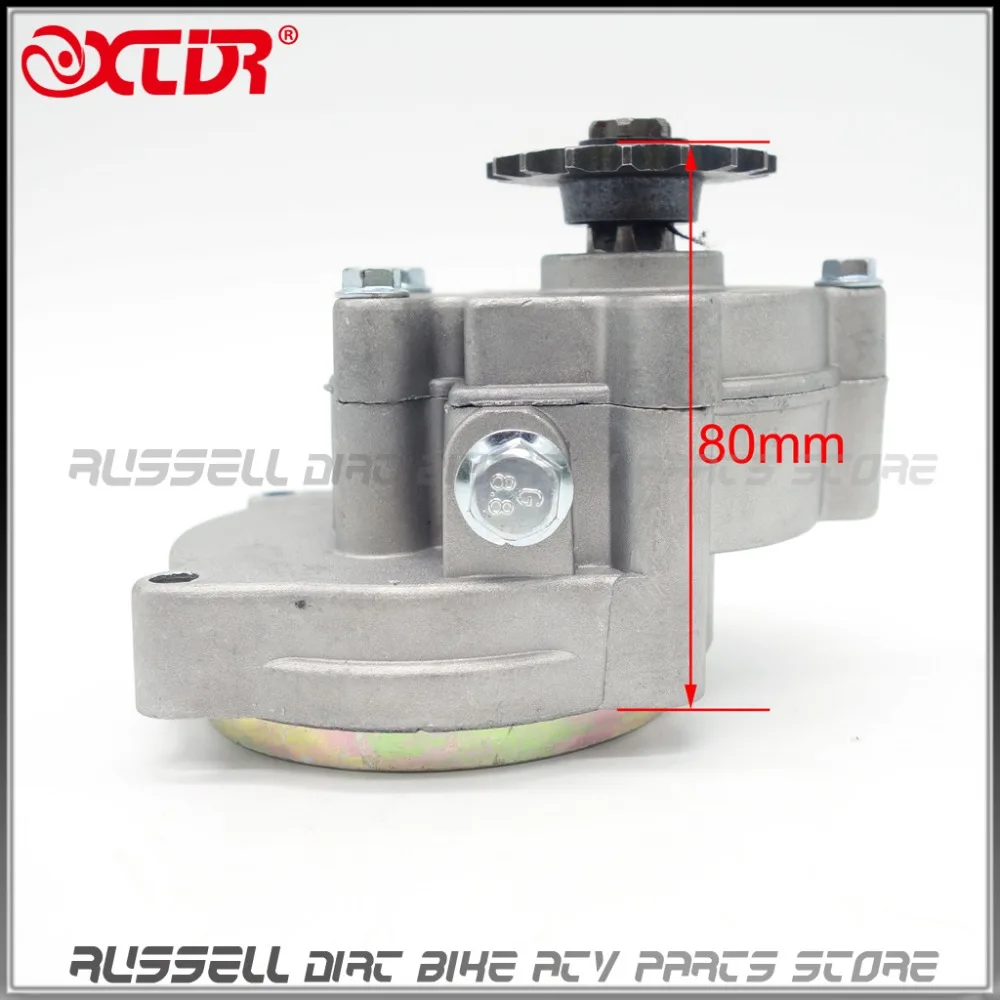

If you need Gear transmission box pls click here.


Specifications:

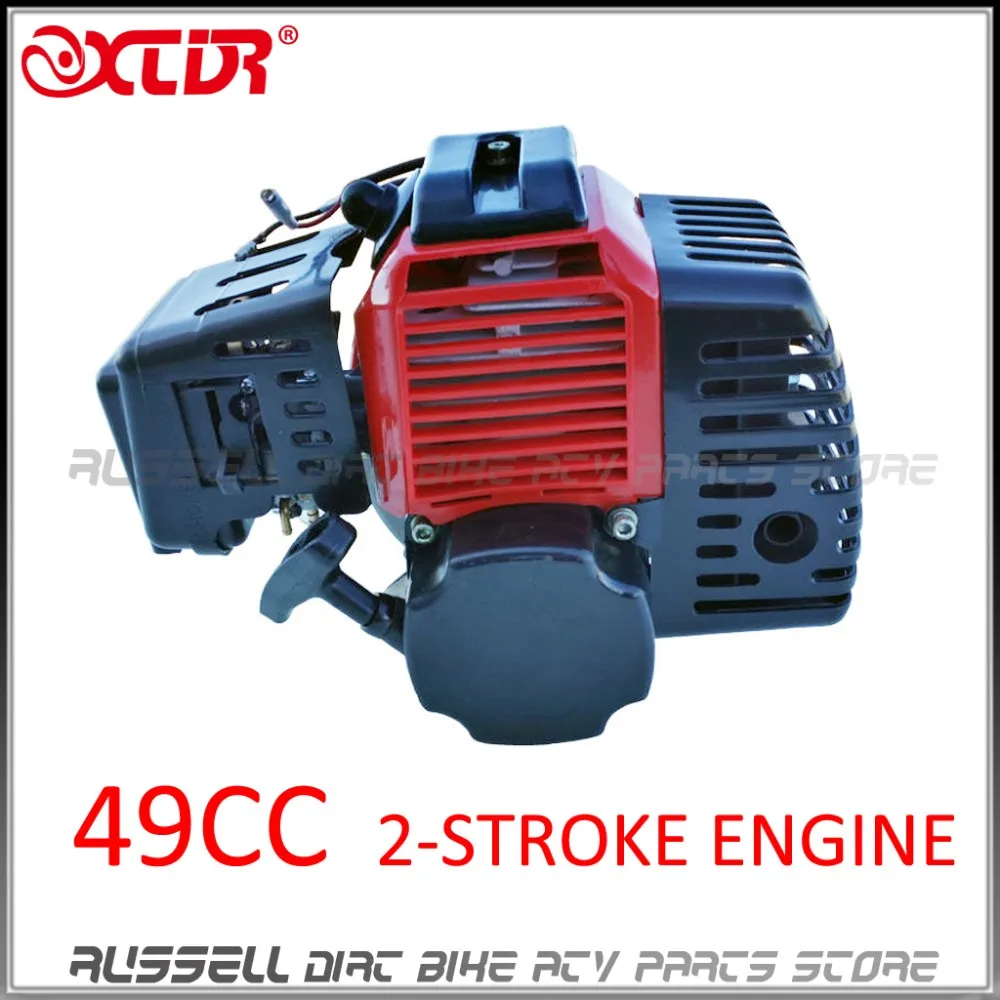

49cc single cylinder, air-cooled, 2-stroke
Fuel: 25:1 gasoline / engine oil mix
Piston Diameter:44MM
Top Mounting Brackets: 11cm
Bottom Mounting Brackets: 10.3cm
Top Through Hole Diameter M.B.: 0.161"
Bottom Through Hole Diameter M.B.: 0.245"
Exhaust Diameter: 0.589"
Connector: 2 Pin
White Cord: 75cm
Length: 26cm
Width: 23cm
Height: 20cm

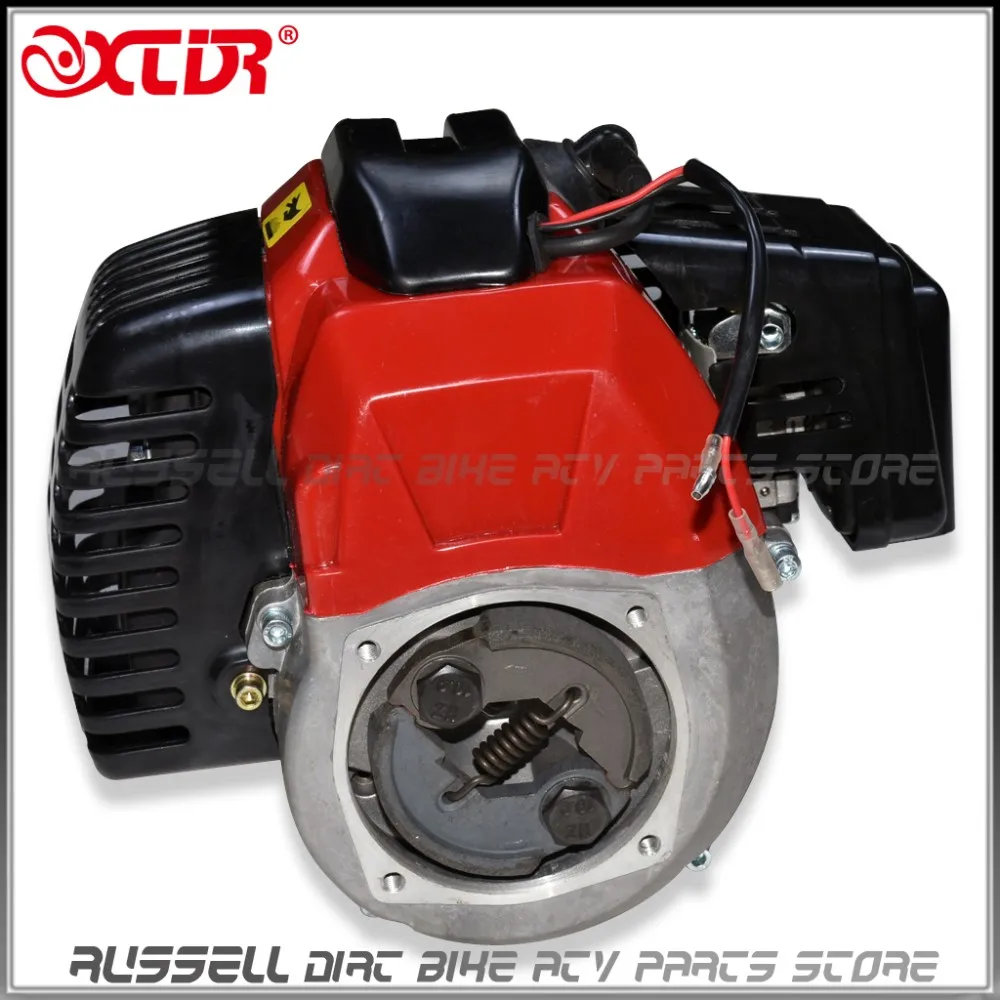

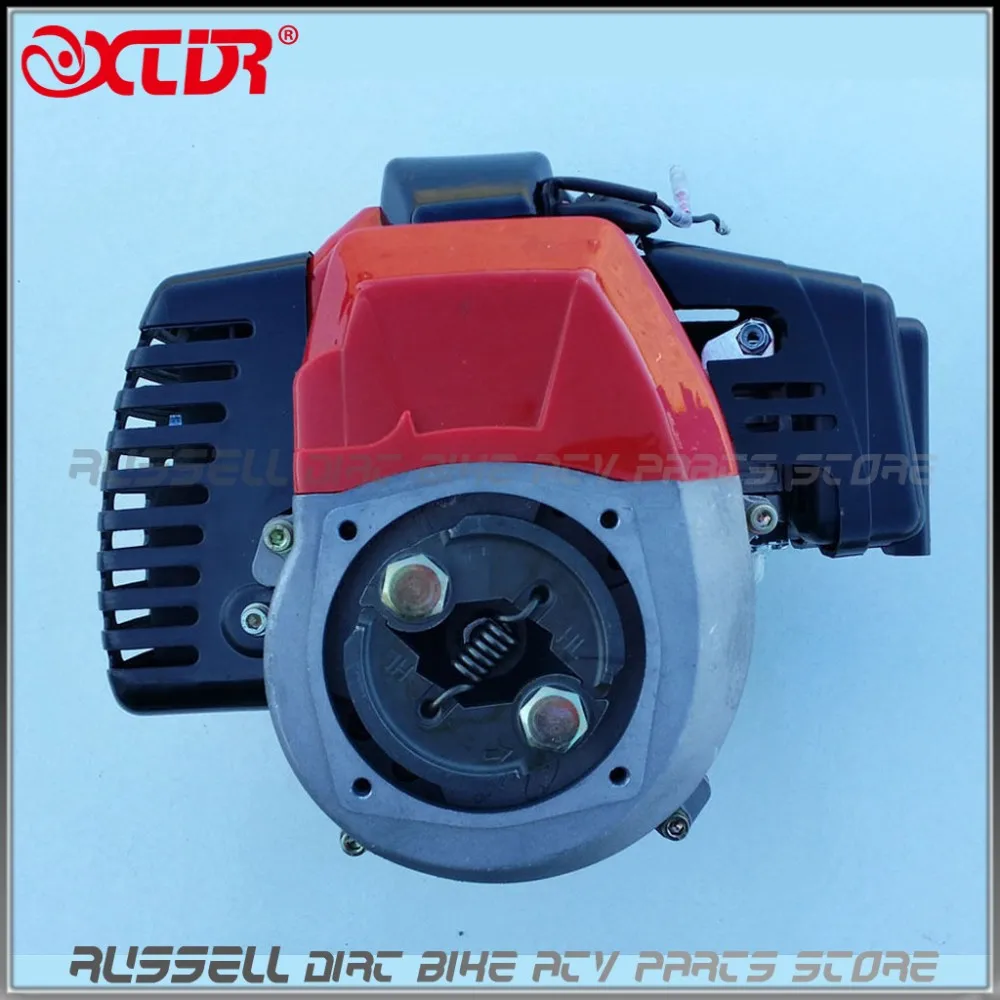

Clutch Mounting Hole Distance: 7.3cm
Clutch Mounting Hole Diameter: 0.289"
Clutch Pad: 2 Shoe
Carburetor Hole Diameter: 0.213"
Pull Start Mounting Hole Distance: 7.3cm
Weight: 4.5KG

Fit:
Majority of gas scooters, pocket bikes, and mini choppers
MINI QUAD /  ATV



Brand New 2 Stroke Pull start engine
single cylinder, air cool
Suits Chinese petrol scooters and choppers
Might also fit for some pocket bikes, quad bikes and dirt bikes.
Only TWO mounting holes at the bottom, distance between is 10cm.

Please make sure it is fit on your bike before purchased.



NOTICE:PLEASE CHECK THE SIZE MATCHES YOURS AND IS CORRECT BEFORE ORDERING
ts026 1 3 TH008 (1) TH008 (2) TH008 (3) TH008 1

TS026 (2)

TS026 (2) TS026 (3) TS026 (1) TS026 (4) TS026 (6) TS026 (7)
